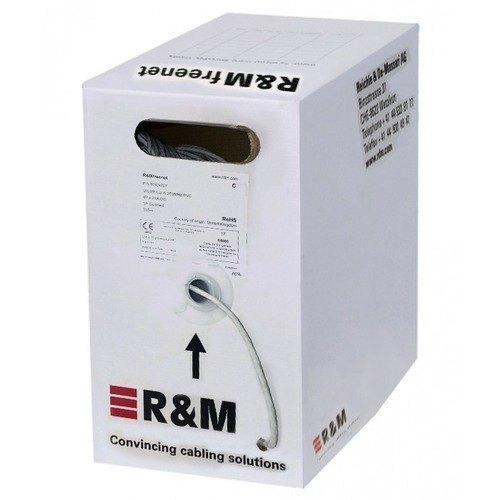

Brand: R&M
MPN: R195731
Model: CAT6 U/UTP LSZH
Outer Jacket: Low Smoke Zero Halogen; Conductor: Bare Solid Copper
Transmission frequency: 250Mhz
4pair with cross separator; 3P and UL certified
Cable Length: 305 Meter
SKU: R195731
Categories: Zotac
| Connection Class | |
|---|---|
| Standard | ISO/IEC 11801 ed. 2.2; IEC 61156-5 2nd ed.; EN 50173-1; EN 50288-6-1; TIA 568-C.2 |
| Connector Class | Installation Cable |
| Shielding Connector | UTP |
| Category Connector | Cat.6 |
| Physical Specs | |
| Color | Grey |
| Cable Details | |
| Conductor | Number of fibers / conductors: 8 Fiber / conductor diameter: AWG23 |
| Cable Information | |
| Standards | ISO/IEC 11801 ed. 2.2; IEC 61156-5 2nd ed.; EN 50173-1; EN 50288-6-1; TIA 568-C.2 |
| Technical Detail | |
| Cable Designation | Cat.6, U/UTP, 4P, 250 MHz, LSZH, Grey, 23AWG |
| Packaging | Drum 305 m |
| Outer Diameter | Cable overall diameter: Ø 5.8 mm ± 0.4 Fiber / conductor diameter: AWG23 |
